AS 510 ProClip 2w1 2T A

Kategorie

2-stroke power for mowing and mulching

The AS 510 ProClip 2in1 2T A is equipped with the world’s only 2-stroke engine that meets the requirements stipulated by the EU Emissions Directive 97/68/EC. The AS 2-stroke engine maintains engine lubrication regardless of position, enabling work on inclines of 40 degrees and more without the risk of engine damage. In addition, the AS 2-stroke engine is factory-equipped with an EasyStart function; the CDI digital ignition system cuts the rpms required to start in half. The 2-stroke engine’s high torque ensures that the power of the AS 510 ProClip 2in1 2T A is not interrupted.
A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen obstacles. A variator allows the speed to be conveniently adjusted from 2.1–4.3 km/h while in motion. Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, leading to extremely uniform cutting results. Cutting height can be adjusted from 40–90 mm via a spring-supported system.
The AS 510 ProClip 2in1 2T ES A is a combination machine that allows the operator to choose between mowing and mulching. The machine is factory-equipped with an easy-to-mount mulch plate, and side discharge deflector for grass up to 50 cm high. Ideal for overgrown lawns and extended mowing intervals on natural meadows.

Mulching saves time and money

The specially-designed mulching blade cleanly cuts grass up to 20 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s three cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out. The AS 510 ProClip 2in1 2T A saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag as well as cost-intensive cuttings disposal.

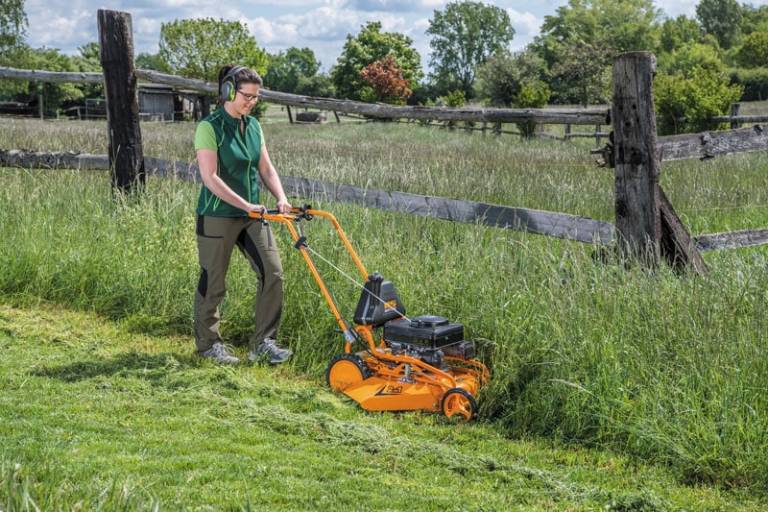

Mow or mulch: The AS 510 ProClip 2in1 2T A is factory-equipped with an easy-to-mount mulch plate and side discharge deflector. Thus grass up to 50 cm high can be mowed with side discharge.

Product advantages

Engine suitable for slopes

The world's only AS 2-stroke engine with EasyStart has position-independent lubrication, ensuring safe operation even on steep slopes.

2in1 function

Mulch or mow with side discharge, the AS 510 2in1 can do both.

Up to 30% time saved

No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Traction drive (AS 510)

Comfortable work through variable adjustable speed (variator) in conjunction with large, aggressive tread drive wheels for optimal traction.

Stable double frame

Stable tube frame with replaceable mulching unit.

Product details

product-image

Stabilna jednostka mulczująca

Zamknięta i głęboka jednostka mulczująca dla równomiernych wyników.

product-image

Regulacja wysokości cięcia

Centralna regulacja wysokości wspomagana sprężynami.

product-image

Specjalne przednie koła

Podwójne łożyska kulkowe, gładko działające koła minimalizują nacisk na trawę.

product-image

Drążek sterujący

Stabilna regulacja wysokości drążka bez użycia narzędzi.

Technical Data

Szerokość cięcia 51 cm
Maksymalna wysokość trawy „mulczowanie” 20 cm
Producent silnika AS-Motor
Oznaczenie silnika AS 165 ES
1-cyl.silnik, 4-suwowy / 2-suwowy /
Maksymalna moc 4,4/6,0 kW (hp)
Zmierzona moc 2,8/3,8 kW (hp)
Prędkość znamionowa 2800 rpm
trzecie łożysko wału korbowego do ochrony silnika
100% mulching function
dodatkowy boczny wyrzut
wysokość koszenia 40 - 90 mm
centralna regulacja wysokości koszenia
regulacja wysokości koszenia, liczba poziomów 6
Napęd na tylne koła
Ilość biegów Vario
prędkość 4,3 km/h
Handlebar adjustment: height
pojemność baku 5 l
wymiary L/W/H 139x55x100 cm
waga 48 kg
Zastrzega się możliwość wprowadzania zmian technicznych i modyfikacji. Na podstawie informacji i ilustracji nie można wysuwać żadnych roszczeń.

Akcesoria

product-image

Licznik motogodzin

Dokumentacja godzin pracy.

product-image

Wskaźnik pochylenia

Wygodny wyświetlacz nachylenia terenu.

product-image

Olej dwusuwowy AS „Titan 2T”

Olej dwusuwowy premium, zapewniający optymalny, przyjazny dla środowiska stosunek mieszanki. Polecany do wszystkich silników dwusuwowych AS. Przetestowany i zatwierdzony do zalecanego przez nas stosunku mieszanki 1:100. Nadaje się również do stosunku mieszanki 1:50. Zastępuje nasz poprzedni olej TITAN 2T 100S, który nie jest już dostępny.
