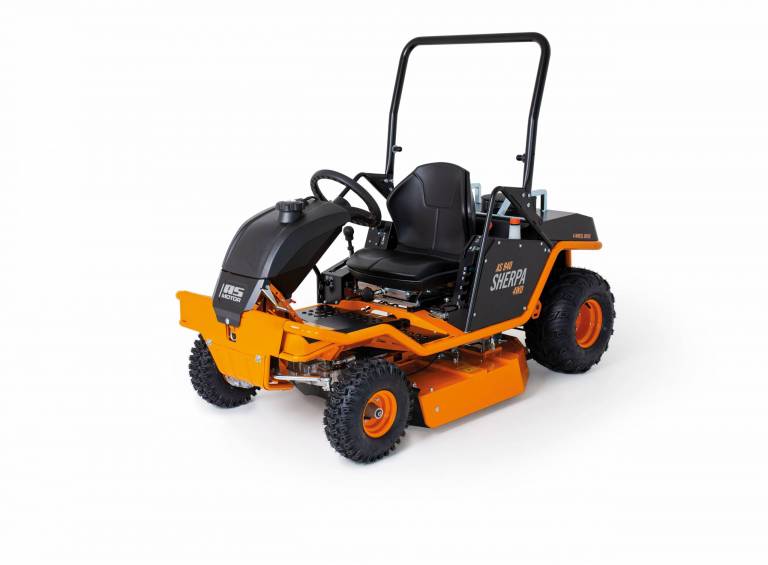

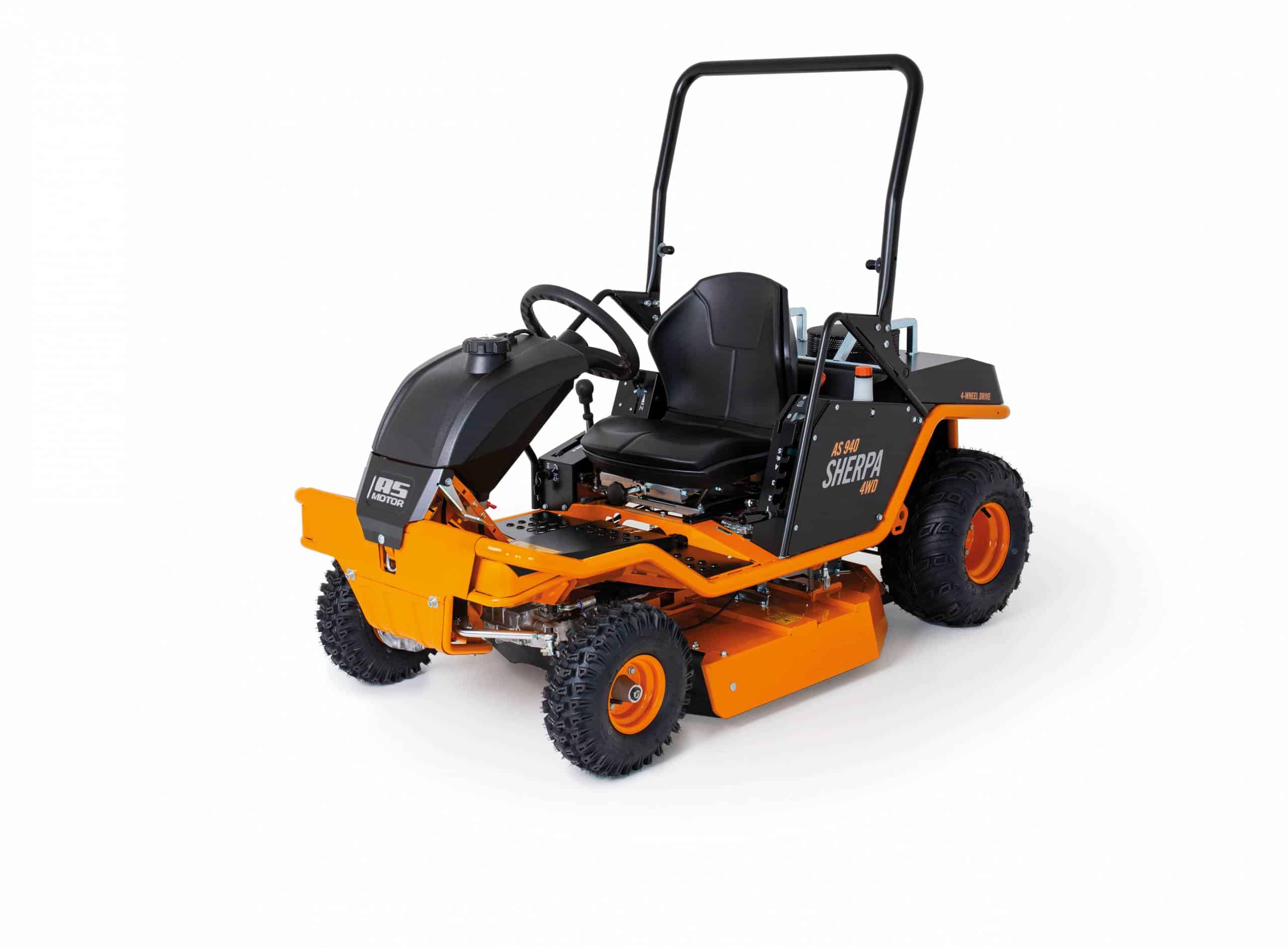

AS 940 Sherpa 4WD Loncin

Kategorie

High-grass, ride-on mower with permanent all-wheel drive

The AS 940 Sherpa 4WD is a robust, versatile ride-on mower for difficult terrain and high growth. The machine’s 2-cylinder Loncin engine with 708 ccm displacement, up to 21,7 hp and an oil and fuel pump achieve work rates reaching 5,500 m² per hour. Permanent all-wheel drive delivers better traction uphill and stronger, safer braking downhill. The limited slip differential can be activated at any time for more safety. Hydrostatic transmission is controlled exclusively via the drive lever, which controls forward and reverse movements as well as the brake and the parking brake. An additional brake pedal returns the drive lever to neutral and automatically engages the parking brake.

The professional 2-cylinder Loncin engine delivers a rated power of 21.2 hp with its 708 cm3. Equipped with the AS cross-blade system, the AS 940 Sherpa 4WD delivers impressive mulching results in grass and dense growth up to 1.5 meters high. Bearing-supported blades cut the grass while a mulching blade positioned above them shreds the cuttings, which are then deposited between the wheels for added safety on slopes and wet grass. The mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. Cutting heights can be adjusted to 5 levels from 50–105 cm and an option mulch kit is available for even finer mulching results.

Stability and comfort

With a highly stable tubular frame, the AS 940 Sherpa 4WD performs even under harsh conditions. Operators up to 1.9 tall can operate the machine comfortably thanks to a length-adjustable seat and seat spring package. A low centre of gravity, folding bar and branch deflectors are added safety features, while lashing points integrated in the frame enable secure transport.

The AS 940 Sherpa 4WD is engineered for continuous operation with two separate ventilation circuits for the engine and hydrostatic transmission. The engine takes in air from above and discharges it to the side, while the hydrostatic transmission takes air from the rear and discharges it downward. This system prevents overheating and ensures the machine’s long service life.

The AS-Motor all-wheel drive ride-on mowers in a new design

The all-wheel drive models of the AS-Motor Sherpa family will appear in a new design in the future. Visually, the new 2023 Sherpa 4WD models are even more attractive with a new paint finish, an additional front panel and the newly designed decals. But the new AS Sherpa 4WD high grass mowers also offer a number of technical innovations.

All all-wheel drive AS Motor Sherpa 2023 models will in future be fitted with anti-puncture tyre sealant as standard – downtimes due to flat tyres are now a thing of the past. The new fuel tank of the Sherpas offers more volume (17 litres), a larger tank opening and a level indicator as standard. The new locking mechanism of the foldable bar provides easier handling and makes the bar less susceptible to damage. There is also improved freedom of movement when operating the driving lever. In future, the protective cloth between the engine and the seat will no longer be elaborately riveted, but locked by robust magnets. Accessibility to the engine, for example when changing the oil, is significantly improved.

Product advantages

All-wheel drive (AS 940)

Permanent all-wheel drive ensures better traction uphill and stronger, safer braking downhill.

Surfing mulch-mower deck

Closed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.

Ergonomic sitting position provides excellent driving comfort

Length-adjustable driver seat, innovative seat suspension and ergonomic sitting position provide comfort for tall operators during long work periods.

Stable tube frame

High stability and torsional rigidity with heavy load.

Optimal all-terrain mobility

Field stud tyres, switchable limited slip differential and an engine suitable for slopes ensure powerful traction on difficult terrain.

Variable hydrostatic transmission (ride-on mower)

Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.

Stable, folding bar

Greater operator safety in the machine's limit area.

Excellent – German Design Award Winner 2023

The consistently sustainable product design of the powerful high grass mowers convinced the top-class jury of the German Design Award. In the citation it says: “The AS Sherpa 4WD was developed specifically for mowing tall grass meadows, which its striking functional design expresses perfectly. A compact ride-on mower reduced to the essentials for sustainable and ecologically oriented green maintenance.”

Product details

product-image

Kosiarka z systemem mulczującym AS

Zamknięta, unosząca się kosząca głowica z systemem noży poprzecznych i nożami wspartymi na łożyskach, które ustępują przed przeszkodami.

product-image

Oddzielne chłodzenie powietrzem

Oddzielne chłodzenie powietrzem silnika i hydrostatycznej przekładni optymalizuje wydajność.

product-image

Przełączany mechanizm różnicowy o ograniczonej poślizgu

Wygodna aktywacja mechanizmu różnicowego o ograniczonej poślizgu za pomocą pedału nożnego dla doskonałego napędu i przyczepności.

product-image

Stabilny, składany drążek

Większe bezpieczeństwo operatora w obszarze granicznym maszyny.

Akcesoria

product-image

Urządzenie do odstraszania owadów

Urządzenie do odstraszania owadów AS-Motor to innowacyjne narzędzie do koszenia, które chroni owady zapylające i małe zwierzęta. Naukowo przetestowane, aby zwiększyć wskaźnik ucieczki owadów, zapewnia zrównoważone koszenie przy zachowaniu wydajności. Zaprojektowane z myślą o trwałości, elastyczności i łatwej integracji z profesjonalnymi kosiarkami AS-Motor.

» Czytać dalej
product-image

Przyczepa

Powierzchnia ładunkowa: D = 1071 mm, S = 607 mm, wysokość burty: 274 mm. Dopuszczalna całkowita waga: 100 kg. Tylna burta może zostać usunięta.

product-image

Zaczep do przyczepy Sherpa

Do łączenia przyczepy AS.

product-image

Schneepflug

Breite: 1107 mm, Höhe: 348 mm. Beidseitig verstellbar.

product-image

Zestaw do mulczowania - AS Sherpa

Do jeszcze drobniejszego mulczowania i bardziej równomiernego cięcia trawników z trawą o wysokości do 40 cm.

product-image

Łańcuchy śniegowe

Łańcuchy napędowe do kół napędowych.

product-image

Opony bliźniacze

One pair (2x2) of rear twin tyres with extreme tread pattern for highest traction.

product-image

Wskaźnik pochylenia

Wygodny wyświetlacz nachylenia terenu.

product-image

Koło kierownicy

Ułatwia sterowanie i manewrowanie jedną ręką na płaskim terenie.

product-image

Płynny uszczelniacz opon "Plattfuss-Stop"

Zmniejsza czas przestoju spowodowany przebiciem opon (20 litrów); może być używany tylko w połączeniu z pompą

» Czytać dalej
product-image

Pompa do uszczelniacza do opon

Do napełniania uszczelniacza do opon "Plattfuss-Stop"; konieczna tylko w połączeniu z 20 l pojemnikiem

Applications
