Mulching is a process by which grass cuttings are shredded several times into a fine mulch, which then remains on the surface as natural fertiliser. Special mulching blades with a double cutting plane and a circular mulching unit are used on ornamental lawns, while cross-blade systems or flail mowers are primarily used in high grass. -
Ornamental lawns in both private gardens and public facilities can be maintained with either mulching or collecting mowers. When mulching, the finely-shredded cuttings remain on the surface as natural fertiliser, while collection bags help the operator transport cuttings to a disposal point. Lawns are usually mowed once per week to a cutting height of 40–50 mm, from a maximum height of 15 cm. -
Flower meadows are structurally rich habitats that are extremely important for insects, wild bees, and species that depend on flowers. The key is not to mow frequently, but to cut at the right time. Before the flowering phase, the vegetation can quickly reach heights of 30–40 cm. After that, maintenance is carried out at longer intervals, usually once or twice a year. This form of extensive use requires machines that can safely cut tall, heterogeneous vegetation without putting unnecessary strain on the area. Clean cuts, controlled deposition, and an adapted driving style are essential for preserving plant populations and enabling regeneration. -
Extensively used meadows such as orchards, compensation areas, or roadside greenery are deliberately mowed only once or twice a year. The vegetation reaches heights of 60 to over 100 cm and forms dense, structurally rich stands. This form of maintenance serves to keep the area open and suppress woody plants, not to maintain the lawn. Machines with high throughput, uniform cutting performance, and controlled deposition of the cut material are required. This is the only way to efficiently manage large amounts of biomass without overloading the area or damaging the soil and vegetation. -
Without maintenance, open areas quickly become overgrown with blackberries, clematis, and young trees. In young forests, reforestation areas, or Christmas tree plantations, targeted brush clearing is necessary to secure the desired structures and reduce competition. It is crucial to use maintenance methods that intervene selectively and do not destroy large areas. Mechanical flail mowing technology makes it possible to remove woody growth and vigorous shrubs without unnecessarily damaging the soil structure and root space. This ensures that areas remain usable and ecologically stable in the long term. -
During the mowing season, professional operators often run their machines 5 days per week, 8 hours per day. AS-Motor’s machines are unbeatable in terms of quality, durability and professional work results. Additional advantages include low weight, lashing points and compact transport dimensions. -
Animal burrows, anthills, mole hills and water channels cause uneven terrain. Several AS-Motor machines have high ground clearance, all-wheel drive and limited slip differential, along with appropriately studded field tyres, for uneven terrain. -
AS-Motor engineers machines with high ground clearance, steep ramp angles, low overall weight, optimal weight distribution and a low centre of gravity to perform on slopes. -
All-wheel drive not only ensures performance on inclines over 30 degrees, but also a high level of safety for travel downhill. All-wheel drive delivers propulsion in wet conditions and on uneven terrain – even if the wheels of one axle no longer have traction. -
Remote controlled devices make the mowing of extreme slopes possible. This technology also allows the operator to mow at a safe distance from dust, wasps, ticks and other hazards. -
The AS 50’s high work rate delivers efficient weed removal on large and uneven surfaces such as a car parks, commercial areas and paths. A collection bag eliminates the need for sweeping and surface cleaning. -
Cobblestones and uneven paved areas can be treated for weeds, without the use of chemicals, using mechanical methods. The agile AS 30 is designed for work close to edges, water inlet channels, manholes and on traffic islands with posts and signs. -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- Ecological mowing and extensive land management focus on reduced, targeted interventions instead of blanket mowing. Cutting heights, timing, and maintenance intervals are based on vegetation development and site conditions, not on maximum area coverage. Sub-areas are mowed on a rotating basis, while others are deliberately left untouched. This creates varying growth heights, refuges, and stable structures on extensive meadows, compensation areas, municipal green spaces, and in landscape management. Technology is used for control, not intensification.
-
-
Jedyna kosiarka do trawników z dwoma prędkościami ostrzy

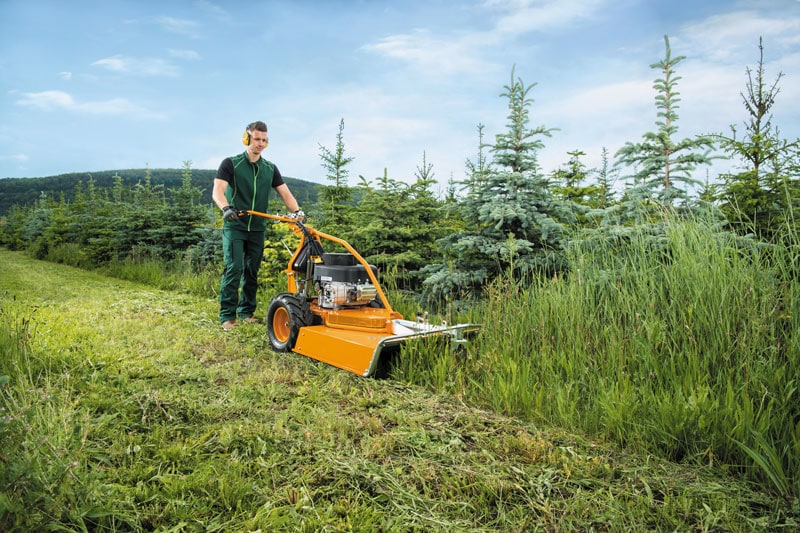

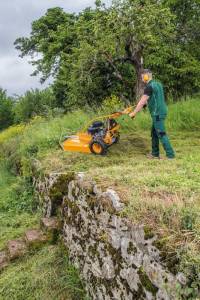

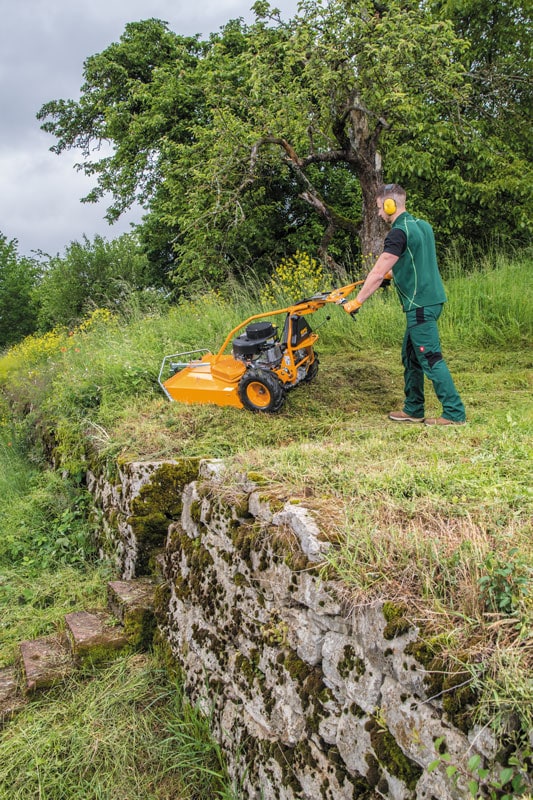

Allmäher do profesjonalnego użytku w trudnych warunkach. Wyposażony w silnik Briggs & Stratton Series 3 INTEK z pompą oleju i paliwa, AS 73 4T B&S radzi sobie ze wzniesieniami do 35 stopni bez ryzyka uszkodzenia silnika. Oddzielna obudowa silnika i wału noża chronią silnik w przypadku niewidocznych przeszkód, a napęd odbywa się za pomocą 5-biegowej manualnej skrzyni biegów z biegiem wstecznym (2,4 km/h), która obejmuje zakres prędkości od 1,6–5,1 km/h. Możliwe są wydajności pracy do 3700 m² na godzinę dzięki mocnemu silnikowi o mocy do 13,0 KM, napędowi na koła i szerokości cięcia 73 cm. AS 73 4T B&S bez wysiłku tnie trawę o wysokości do 150 cm. Zmienna prędkość ostrzy oferuje dwie opcje w zależności od warunków: wyższa prędkość ostrzy osiąga jeszcze lepszy efekt mulczowania, podczas gdy niższa prędkość ostrzy z większym momentem obrotowym jest zalecana do gęstej i wysokiej roślinności, takiej jak obszary rzadko koszone. AS 73 4T B&S jest więc odpowiedni do praktycznie każdego zastosowania.
Obsługa jest prosta, wygodna i bezpieczna
AS 73 4T B&S działa za pomocą dźwigni obsługi, które aktywują hamulec postojowy, napęd, ograniczony poślizg mechanizmu różnicowego i sprzęgło noża. Absolutne bezpieczeństwo podczas koszenia na zboczach jest osiągane dzięki automatycznemu hamulcowi postojowemu i ograniczonym poślizgom mechanizmu różnicowego, który pozostaje stale zablokowany podczas jazdy maszyny. Kiedy dźwignia napędu jest zwolniona, hamulec postojowy automatycznie się załącza i AS 73 4T B&S zatrzymuje się, czy to na zboczu, czy na płaskim terenie. Do wygodnej obsługi belka prowadząca jest wyposażona w kierownicę w kształcie litery V, którą można regulować bocznie i wysokościowo bez użycia narzędzi. Wysokość cięcia może być regulowana od 50–100 mm, podczas gdy opony niskociśnieniowe z kolcami zapewniają optymalny napęd zarówno na zboczach, jak i na płaskim terenie.
Imponujące rezultaty cięcia dzięki systemowi krzyżowych ostrzy
System krzyżowych ostrzy składa się z głównego ostrza i nakładkowego ostrza skrzydłowego, zapewniając cztery krawędzie tnące do cięcia trawy i podrostu. Zamknięty pokos oznacza, że skoszona trawa pozostaje wewnątrz przez dłuższy czas i jest cięta wielokrotnie. W połączeniu z wysoką prędkością ostrzy, AS 73 4T B&S oferuje doskonałe rezultaty cięcia w niskiej do średnio wysokiej trawie.
Zalety produktu
Dodatkowa pompa paliwa i oleju z przełącznikiem ciśnienia oleju optymalizuje wydajność na zboczach.
System noży krzyżowych AS tnie i rozdrabnia trawę jednocześnie.
AS 73 oferuje dwie prędkości ostrza dla optymalnej wydajności w każdym rodzaju roślinności.
Po zwolnieniu dźwigni napędu maszyna zatrzymuje się automatycznie, niezależnie od tego, czy znajduje się na wzniesieniu, czy na płaskim terenie.
Trwale zablokowany mechanizm różnicowy ograniczający poślizg otwiera się po naciśnięciu dźwigni blokady mechanizmu różnicowego.
Oddzielny silnik i wał noża chronią silnik.
Obsługa hamulca postojowego, załączania noży, mechanizmu różnicowego o ograniczonej poślizgu, funkcji napędu, dostosowania prędkości, wszystko za pomocą zaledwie trzech dźwigni.
Opony z bieżnikiem do doskonałej przyczepności na zboczach.
Product details

Regulacja wysokości
Centralna, zmienną regulacja wysokości od 50–100 mm.

Manualna skrzynia biegów
5-biegowa manualna skrzynia biegów z ograniczonym poślizgiem mechanizmu różnicowego i biegiem wstecznym zapewnia optymalny napęd, nawet na mokrej trawie.

Zamknięty pokos z tylnym wyrzutem
Trawa i roślinność są drobno cięte i mulczowane w zamkniętym pokosie z tylnym wyrzutem. Ten system umożliwia również pracę blisko krawędzi.

Regulowana belka operacyjna
Belka prowadząca może być regulowana bocznie i wysokościowo, aby dostosować się do wzrostu operatora.
Akcesoria

Licznik motogodzin
Dokumentacja godzin pracy.

Elektrischer Starter
Der Elektrostarter ermöglicht ein einfaches und bequemes Starten der Maschine.

Odchylacz gałęzi
Koszenie ochronne dla upraw drzew.

Stahl-Handschutz-Set
Zusätzlicher Schutz für den Bediener.

Wskaźnik pochylenia
Wygodny wyświetlacz nachylenia terenu.

Podgrzewany uchwyt
Ciepłe dłonie w zimnych warunkach.

Płynny uszczelniacz opon "Plattfuss-Stop"
Zmniejsza czas przestoju spowodowany przebiciem opon (20 litrów); może być używany tylko w połączeniu z pompą
» Czytać dalej
Pompa do uszczelniacza do opon
Do napełniania uszczelniacza do opon "Plattfuss-Stop"; konieczna tylko w połączeniu z 20 l pojemnikiem
